Piezoelectric and IEPE Vibration Sensors压电与 IEPE 振动传感器
Single-axis, triaxial and high-temperature accelerometers for structural response, modal testing, machinery vibration and high-energy transients. Select the sensing structure, output mode, range and temperature class as one measurement chain.面向结构响应、模态试验、机械振动与高能瞬态的单轴、三轴和高温加速度传感器。按照传感结构、输出方式、量程与温度等级整体选型，形成完整测量链。
Dynamic Response Reveals Changes That Displacement Alone Cannot动态响应揭示位移数据无法单独说明的变化
Acceleration records how a structure responds to traffic, wind, rotating equipment, hydraulic excitation and impact. Frequency, phase and amplitude together support modal identification, operating-condition comparison, event capture and fatigue assessment.加速度记录结构对交通、风、旋转机械、水力激励与冲击的响应。频率、相位与幅值共同支撑模态识别、工况对比、事件捕捉与疲劳评估。
Stiffness and Boundary Change刚度与边界变化
Natural-frequency and mode-shape shifts provide repeatable evidence of structural-system change.自振频率与振型变化为结构体系变化提供可重复的证据。
Operating Response运行响应
Peak, RMS and band energy quantify vibration under traffic, machinery and environmental loads.峰值、RMS 与频带能量量化交通、机械和环境荷载下的振动。
Mode and Load Path振型与传力路径
Synchronized channels preserve relative phase for operational and experimental modal work.同步通道保留相对相位，用于运营与实验模态分析。
Impact and Abnormal Events冲击与异常事件
Triggered acquisition retains the waveform before and after a short-duration event.触发采集保留短时事件前后的完整波形。
Inertial Force Becomes a Charge Signal把惯性力转换为电荷信号
A seismic mass applies force to a piezoelectric element as the sensor body accelerates. The generated charge is proportional to force and therefore to acceleration within the calibrated operating range.传感器壳体运动时，惯性质量对压电元件施加作用力；在标定工作范围内，产生的电荷与力成正比，从而与加速度成正比。
Charge or IEPE Output电荷输出或 IEPE 输出
Charge-output sensors place the piezoelectric element directly at the measurement front end. They suit high temperature, long cable specialization and charge-amplifier systems. IEPE sensors integrate a low-impedance converter and use constant-current excitation, simplifying field wiring and improving immunity to cable noise.电荷输出传感器将压电元件直接接入测量前端，适用于高温、专用长电缆和电荷放大器系统；IEPE 传感器内置信号转换，以恒流方式供电，现场接线更简单，并降低电缆运动噪声的影响。
Three Configurations for Different Dynamic Questions三类配置对应不同的动力测量问题
The listed range and temperature values describe the available portfolio. Final sensitivity, frequency response, connector and mass are confirmed against the selected model.以下量程与温度描述产品组合的覆盖范围；具体灵敏度、频响、接口与质量以所选型号的最终规格为准。

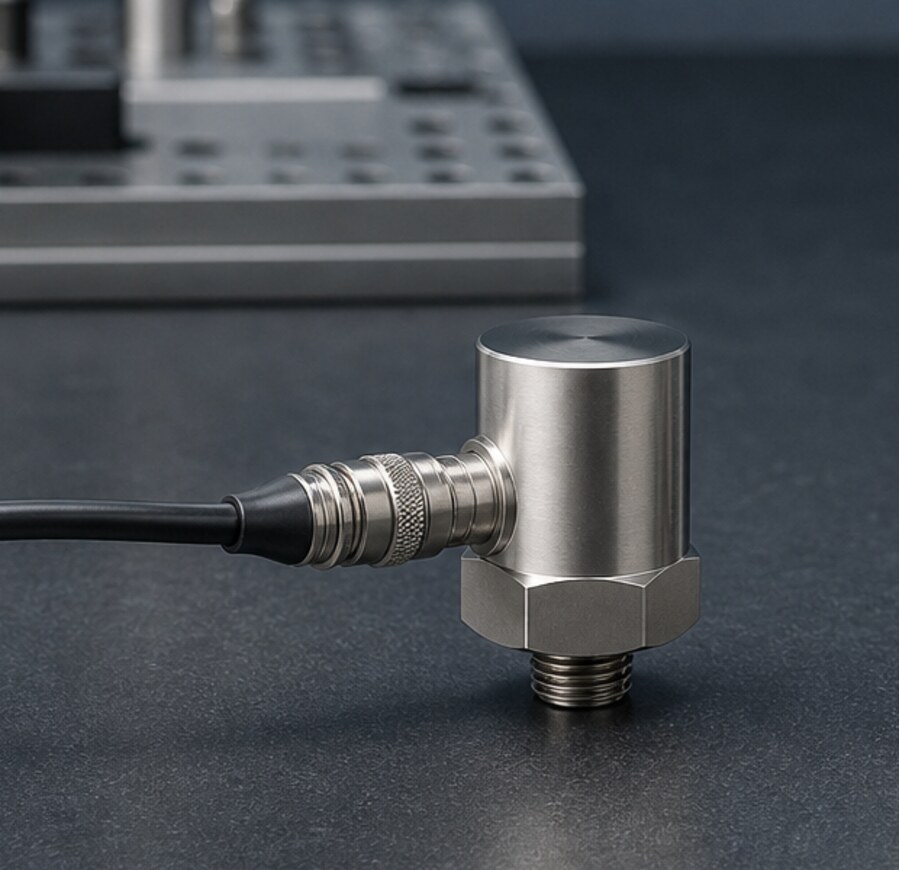

Single-Axis Piezoelectric and IEPE单轴压电与 IEPE
The default choice when the dominant response direction is known. DS covers test-grade charge and IEPE configurations; CS provides an industrial, cost-efficient family; LY targets long-term wind and rail deployment with double shielding and IP67 protection.当主要响应方向明确时，单轴是首选。DS 覆盖试验级电荷与 IEPE 配置；CS 面向工业测试和高性价比部署；LY 采用双屏蔽与 IP67 防护，适合风电和轨道交通长期安装。
- ✓Five acceleration classes五档加速度量程
10 g · 50 g · 100 g · 500 g · 2000 g
- ✓Two signal-chain choices两种信号链
Charge output for specialist conditioning; IEPE for direct constant-current acquisition.电荷输出匹配专业调理，IEPE 直接接入恒流采集通道。

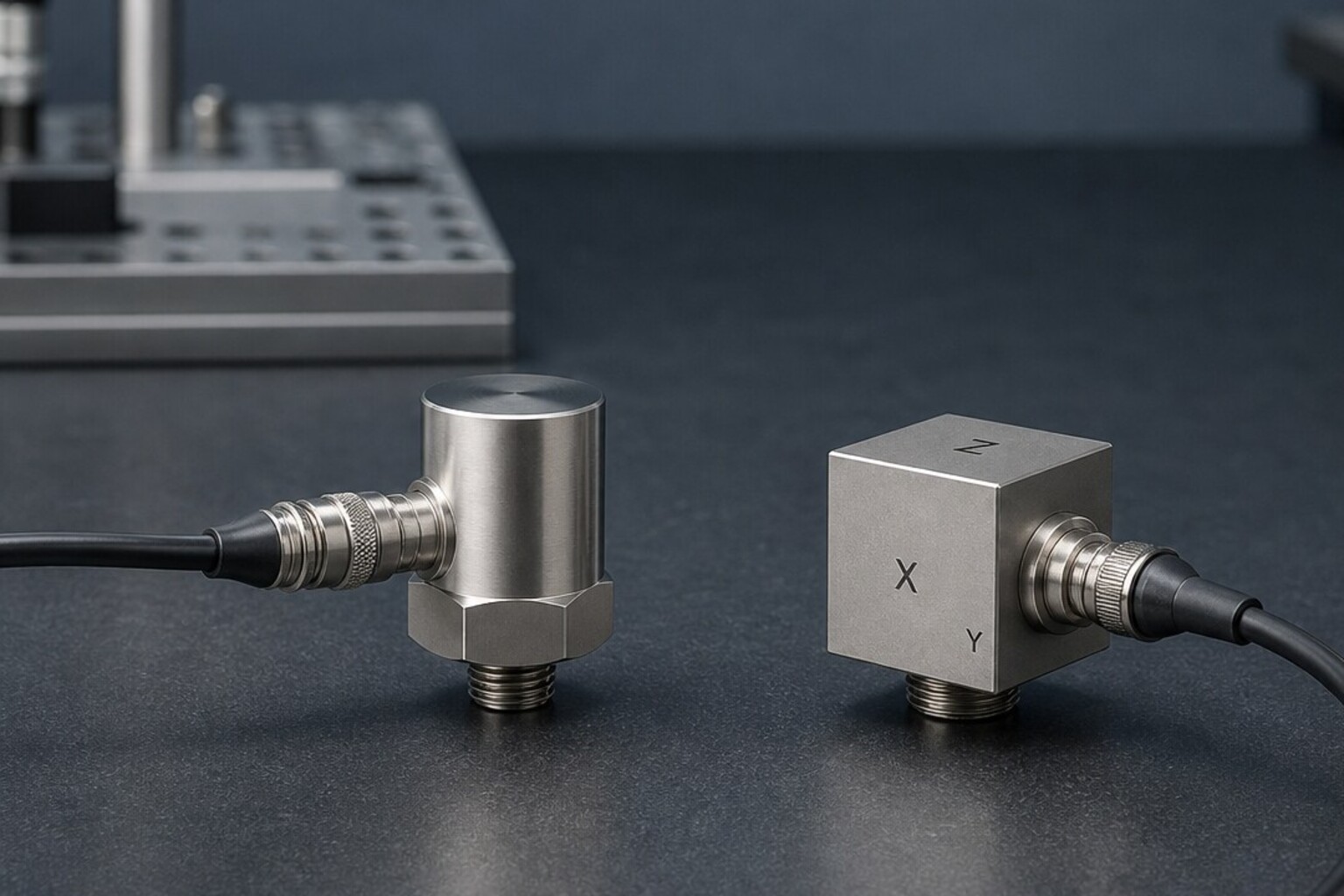

Triaxial Acceleration三轴加速度
Three orthogonal channels record the complete local acceleration vector at one point. This reduces mounting mismatch between directions and is especially valuable for mode-shape reconstruction, spatial response comparison and compact test articles.三个正交通道在同一测点记录完整局部加速度矢量，减少不同方向独立安装造成的位置与方向误差，适用于振型重构、空间响应对比和紧凑试件。
- ✓Common measurement point同一物理测点
X/Y/Z phase and amplitude remain directly comparable when the DAQ channels are synchronized.配合同步数采后，X/Y/Z 三方向的相位和幅值可直接比较。
- ✓Standard and miniature IEPE标准与小型 IEPE
Choose the smaller S family where sensor mass and installation space are tightly constrained.附加质量与安装空间受限时，优先选择小型 S 系列。

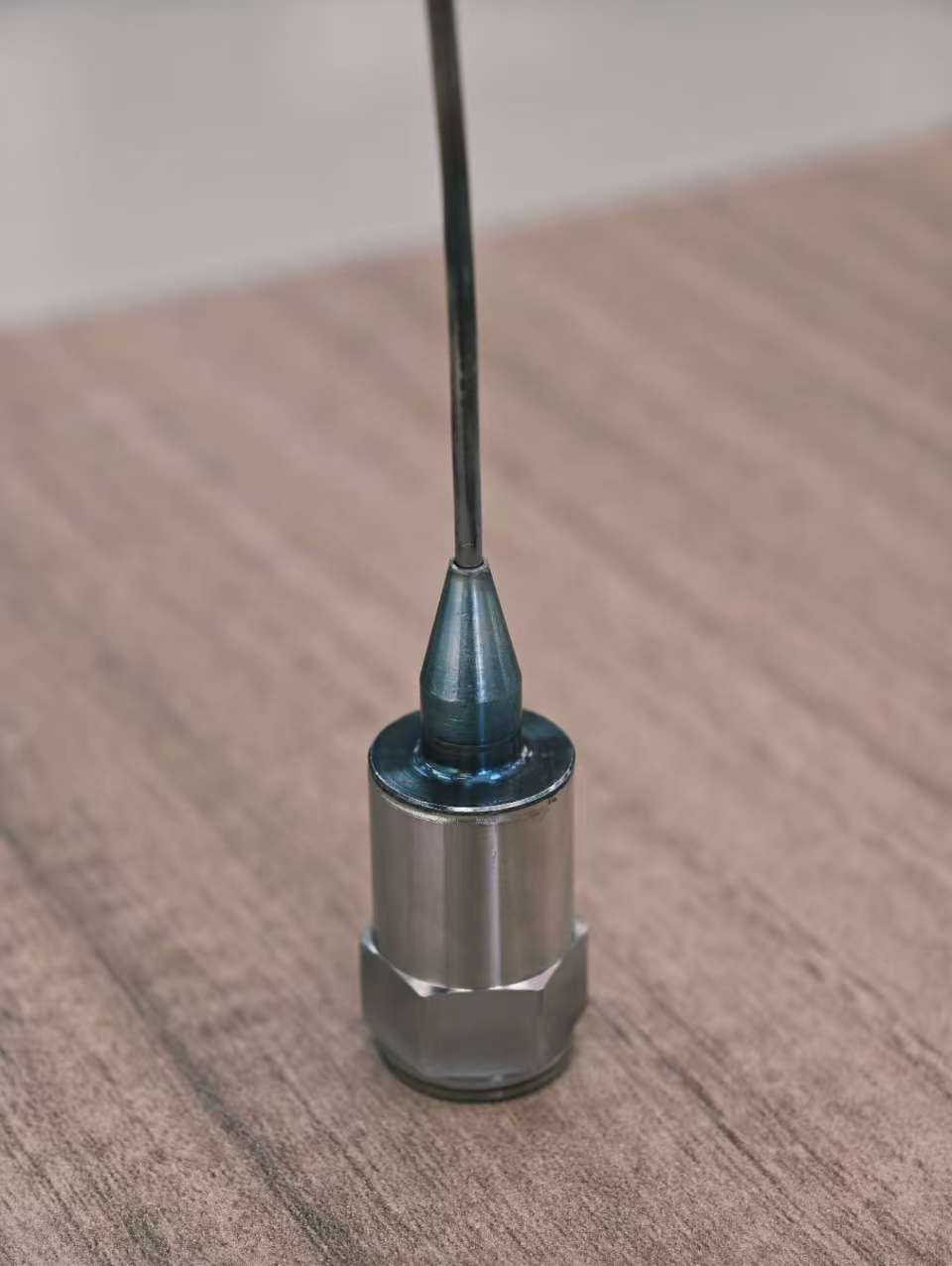

High-Temperature Vibration高温振动
The H-family charge sensors extend measurement into hot zones where integrated electronics cannot be placed. The portfolio reaches 485°C for aero-engine, turbine, exhaust, furnace and other high-temperature structural tests.H 系列采用电荷输出，把测量扩展到集成电子电路无法直接工作的高温区域。产品组合最高覆盖 485°C，适用于航空发动机、涡轮、排气、炉体及其他高温结构试验。
- ✓Remote charge conditioning远端电荷调理
The sensor remains in the hot zone while the charge amplifier is located in a controlled environment.传感器位于高温测点，电荷放大器布置在受控温区。
- ✓High-temperature cable system高温电缆系统
Cable, connector, routing and strain relief must share the required temperature and vibration rating.电缆、接口、走线与应力释放必须共同满足目标温度和振动等级。
Choose the Family Before the Exact Range先确定系列，再确定具体量程
Application environment and signal-chain architecture normally determine the family; expected peak acceleration then determines the range code.应用环境与信号链架构通常先决定产品系列，再根据预期峰值加速度确定量程代码。
| Family系列 | Configuration配置 | Available ranges可选量程 | Best fit典型用途 |
|---|---|---|---|
| DS | Single / triaxial; charge / IEPE; high-temperature options单轴 / 三轴；电荷 / IEPE；可选高温 | 10 / 50 / 100 / 500 / 2000 g | Precision test, modal, aerospace and broad laboratory work精密试验、模态、航空航天与综合实验室测试 |
| CS | Industrial single-axis charge or IEPE工业单轴电荷或 IEPE | 10 / 50 / 100 / 500 / 2000 g | Machinery, production test and cost-efficient channel expansion机械、产线测试与高性价比扩展通道 |
| LY | Shielded IEPE, IP67屏蔽 IEPE，IP67 | 5 / 10 / 20 / 50 g | Wind turbines, rail systems and long-term outdoor monitoring风电、轨道交通与长期户外监测 |
Portfolio envelope: approximately 0.5 Hz to 15 kHz, -55°C to 485°C and transverse sensitivity no greater than 1% for applicable models. These are not simultaneous specifications for every model.产品组合覆盖约 0.5 Hz 至 15 kHz、-55°C 至 485°C，适用型号横向灵敏度不大于 1%。上述为组合边界，并非每个型号同时具备全部指标。
Installation Quality Sets the Usable Frequency Band安装质量决定可用频带
A high-bandwidth sensor cannot correct a flexible mount, poor surface contact, unsecured cable or aliasing in the acquisition chain.高带宽传感器无法弥补柔性安装、接触面不良、电缆未固定或采集链混叠。
Threaded Stud for the Widest Band螺柱安装获得最宽频带
Machine a flat, clean seat and tighten to the specified torque. The rigid interface gives the most repeatable high-frequency response and phase.加工平整洁净的安装面，并按规定扭矩紧固。刚性界面可获得最稳定的高频响应与相位重复性。
Thin Bond Layer for Non-Drilled Points不打孔测点采用薄层胶粘
Degrease and abrade the seat, keep the adhesive layer thin and verify its temperature rating. Added compliance reduces the upper usable frequency.测点需除油并轻度打磨，胶层应薄且满足温度等级。胶层柔度会降低可用频带上限。
Rapid Survey on Ferromagnetic Steel磁座用于钢结构快速巡测
Use on clean ferromagnetic steel and secure the cable close to the point. Magnetic bases add mass and compliance, so validate the required bandwidth.适用于洁净铁磁性钢面，并在测点附近固定电缆。磁座会增加质量和柔度，使用前应核验目标频带。
Reserve Peak Headroom为峰值预留余量
Select the lowest range that safely contains normal response and credible impact peaks without overload.在不发生过载的前提下，选择能够覆盖正常响应与可信冲击峰值的最低量程。
Prepare a Rigid Interface建立刚性安装界面
Use a flat clean surface and the specified stud, adhesive or magnetic base; mounting resonance must remain above the analysis band.使用平整洁净表面及规定的螺柱、胶粘或磁座，安装共振应高于分析频带。
Control Cable Motion控制电缆运动
Provide strain relief near the sensor and secure the cable away from hot, sharp and high-EMI routes.在传感器附近做应力释放，并避开高温、锐边与强电磁干扰路径固定电缆。
Check the Complete Chain检查完整测量链
Confirm sensitivity, excitation or charge gain, sample rate, anti-alias filter, polarity and channel orientation before recording.采集前确认灵敏度、恒流激励或电荷增益、采样率、抗混叠滤波、极性与通道方向。
From Long-Span Structures to High-Speed Machinery从大型结构到高速机械
The same acceleration unit serves very different engineering decisions. Sensor range, mounting and acquisition strategy follow the expected dynamics.相同的加速度物理量服务于不同工程判断，量程、安装与采集策略必须跟随目标动力特性。
Structural Health Monitoring结构健康监测
Traffic, wind, gate and unit-operation response; modal baselines; event-triggered vibration records.交通、风、闸门与机组工况响应，模态基线及事件触发振动记录。
Turbine and Tower风机与塔筒
Blade, gearbox and tower vibration under changing speed, load and wind conditions.不同转速、载荷和风况下的叶片、齿轮箱与塔筒振动。
Vehicle and Track车辆与轨道
Bogie and car-body response, ride dynamics, track irregularity and impact location.转向架与车体响应、运行平稳性、轨道不平顺与冲击位置识别。
Engine and Machinery Test发动机与机械测试
Engine, spindle, tooling and production-quality vibration, including high-temperature measurement points.发动机、主轴、刀具和制造质量振动，包括高温测点。
Select the sensor and DAQ as one system把传感器与数采作为一个系统选型
Provide the structure, expected frequency and peak acceleration, temperature, mounting space, cable length, channel count and required analysis. Rasber will match the sensor family, range and acquisition input.提供结构类型、预期频段与峰值加速度、温度、安装空间、电缆长度、通道数和分析要求，瑞茨柏将匹配传感器系列、量程与采集输入。
